Cummins Genset Generator Set 80kw 100kva With Low Noise Generator by USA Cummins Engine 6BT5.9-G2

    Buy cheap Cummins Genset Generator Set 80kw 100kva With Low Noise Generator by USA Cummins Engine 6BT5.9-G2 from wholesalers

    Buy cheap Cummins Genset Generator Set 80kw 100kva With Low Noise Generator by USA Cummins Engine 6BT5.9-G2 from wholesalers
    • Buy cheap Cummins Genset Generator Set 80kw 100kva With Low Noise Generator by USA Cummins Engine 6BT5.9-G2 from wholesalers
    • Buy cheap Cummins Genset Generator Set 80kw 100kva With Low Noise Generator by USA Cummins Engine 6BT5.9-G2 from wholesalers

    Cummins Genset Generator Set 80kw 100kva With Low Noise Generator by USA Cummins Engine 6BT5.9-G2

    Ask Lasest Price
    Brand Name : Ai Power
    Model Number : A100
    Certification : CE, ISO9001, SONCAP
    Price : USD8000/set
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 200 units per month
    Delivery Time : 30 to 35 days
    • Product Details
    • Company Profile

    Cummins Genset Generator Set 80kw 100kva With Low Noise Generator by USA Cummins Engine 6BT5.9-G2

    Product Description

    Cummins Genset Generator Set 80kw 100kva With Low Noise Generator by USA Cummins Engine 6BT5.9-G2

    Cummins Genset Generator Set 80kw 100kva With Low Noise Generator by USA Cummins Engine 6BT5.9-G2
    Engine
    GENERAL ENGINE DATA
    Engine manufacturer
    Dongfeng Cummins Engine Co. Ltd
    Engine brand
    Cummins
    Engine model
    6BT5.9-G2
    Engine speed (rpm)
    1500
    Engine output(kWm)
    Standby Power
    92
    Prime Power
    86
    Continuous Power
    TBD
    No. of Cylinder
    6
    Aspiration
    Turbochanger
    Bore * Stroke (mm)
    102 * 120
    Displacment (litre)
    5.9
    Compression Ratio
    17.3:1
    Engine Idle Speed (rpm)
    750-850
    FUEL SYSTEM
    Type Injection System
    BYC A/Electronic Governor
    Fuel Consumption (litre/hour)
    100% prime power
    22.3
    75% prime power
    16.9
    50% prime power
    11.3
    25% prime power
    6.5
    EXHAUST SYSTEM
    Maximum Back Pressure (kPa)
    10
    Exhaust Gas Temperature (standby/prime power) (°C)
    565/525
    Exhaust Gas Flow(standby/prime power) (litre/sec.)
    280/250
    AIR INDUCTION SYSTEM
    Maximum Intake Air Restriction (kPa)
    with Dirty Filter Element
    6.2
    with Clean Filter Element
    3.7
    Intake Air Flow (standby/prime power) (litre/sec.)
    108/100
    LUBRICATION SYSTEM
    Oil Pressure (kPa)
    Idle Speed
    207
    Governed Speed
    345
    Maximum Oil Temperature (°C)
    121
    Min. required Lube system capacity-sump plus filters (liter)
    16.4
    COOLING SYSTEM
    Coolant Capacity — Engine Only (liter)
    7.9
    Standard Thermostat Modulating Range (°C)
    82-95
    Maxi. Top Tank Temp. for Standby/Prime Power (°C)
    104 / 100
    ELECTRICAL SYSTEM
    Cranking Motor (Heavy Duty, Positive Engagement) (volt)
    12
    Battery Charging System, Negative Ground (ampere)
    63
    Minimum Recommended Battery Capacity
    Cold Soak @ -18 to 0-C (0°F CCA)
    625
    Alternator
    Alternator manufacturer
    Leroy-somer Electro-technique (Fuzhou) Company Ltd.
    Alternator brand
    Leroysomer
    Alternator model
    TAL-A44-D
    Control system
    SHUNT
    A.V.R.
    Included
    Voltage regulation
    ±1.0%
    Insulation system
    Class H
    Protection
    IP23
    Rated power factor
    0.8
    Winding pitch
    Two thirds
    Winding leads
    6
    Frequency (Hz)
    50
    Voltage (V)
    400
    Phase
    3
    Output ratings (kVA/kW)
    ----------------Cont.H-40°C
    100/80
    ----------------Standby-27°C
    110/88
    THF
    <2%
    TIF
    <50
    Max. overspeed (Rev/Min)
    2250
    Bearing
    Single

    Cummins Genset Generator Set 80kw 100kva With Low Noise Generator by USA Cummins Engine 6BT5.9-G2

    Cummins Genset Generator Set 80kw 100kva With Low Noise Generator by USA Cummins Engine 6BT5.9-G2

    Open Type.

    Famous brand engine couple with high quality alternator
    Large size cooling radiator
    Heavy duty steel base frame
    Strong anti-vibration mat
    Standard free maintenance battery
    AC alternator for battery charger
    Heavy-duty air filter, oil filter, water filter
    Famous brand controller and breaker
    Optional fuel tank, silent canopy, ATS, synchronization panels.

    Cummins Genset Generator Set 80kw 100kva With Low Noise Generator by USA Cummins Engine 6BT5.9-G2
    Cummins Genset Generator Set 80kw 100kva With Low Noise Generator by USA Cummins Engine 6BT5.9-G2

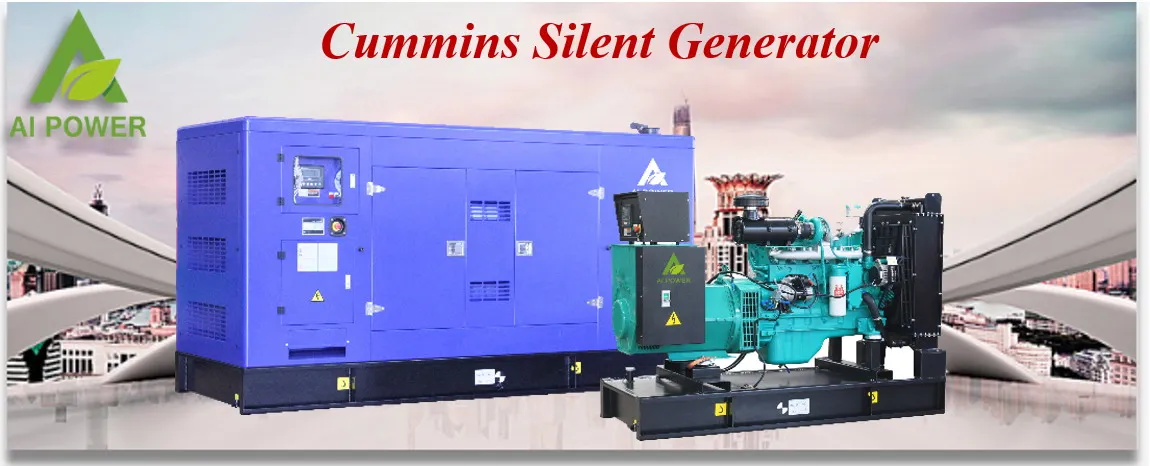

    Silent Type.

    1.Fresh air inlet cooling system
    2.Fuel refill nipple
    3.Fuel outlet
    4.Lub oil outlet
    5. 8hours base fuel tank

    .

    Products Show

    Cummins Genset Generator Set 80kw 100kva With Low Noise Generator by USA Cummins Engine 6BT5.9-G2Cummins Genset Generator Set 80kw 100kva With Low Noise Generator by USA Cummins Engine 6BT5.9-G2

    Our Factory

    AI POWER is the professional manufacturer of power generator, light tower and air compressor in China. We provides a complete line of generators for commercial,industrial and residential application.We specialize in providing a wide range of well known and trusted brands of diesel generators, supplying generators from 5kw to 2000kw at competitive prices.
    Besides generators, we also product the refere product incldue lighting towers and air compressor. At the same time, we also provide the reference electrical products, include ATS, Synchronization system & switchgear.
